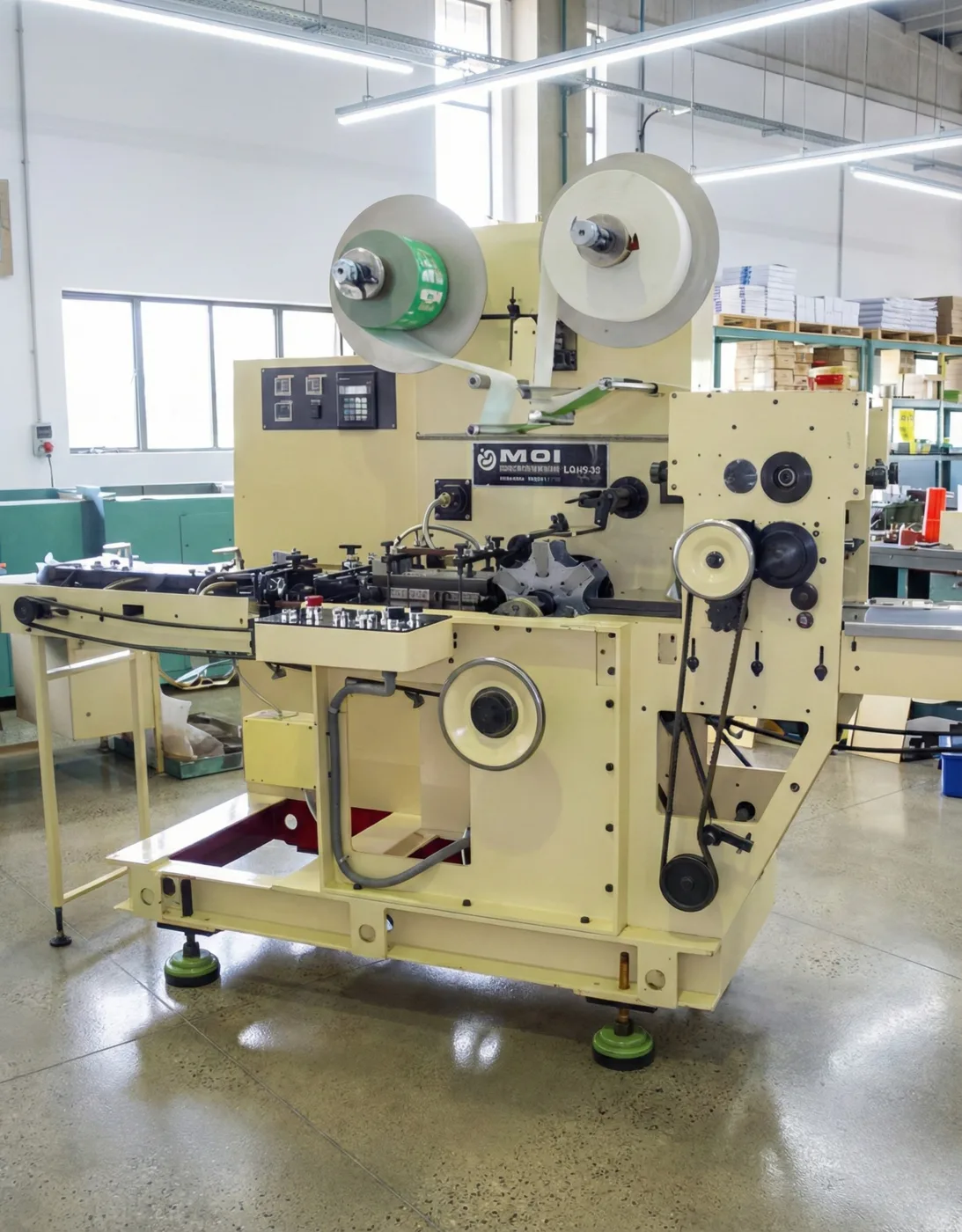

TSW 160 Toilet Soap Wrapping Machine
Rectangular and elliptical bars — 160 per minute with heat sealing.
Key Specifications
Full Technical Specifications
TSW 160 Toilet Soap Wrapping Machine -- Complete specification details
| Specification | Value |
|---|---|
| Output Capacity | Up to 160 packets/minute |
| Product Length | 60-110 mm |
| Product Width | 35-65 mm |
| Product Height | 13-35 mm |
| Wrapping Material | Paper, Poly, Hot Melt Laminated |
| Core Diameter | 76 mm |
| Reel Diameter | 400 mm |
| Sealing Technology | Heat Sealing |
| Supported Shapes | Rectangular, Elliptical (excluding round) |
| Electrical Supply | 415V, 3-phase-4 wire, 50 Hz |
| Installed Power | 4.5 kW |
| Machine Length | 2,650 mm |
| Machine Width | 1,500 mm |
| Machine Height | 1,760 mm |
| Machine Weight | 1,000 kg |
Features & Benefits
Wraps 160 rectangular and elliptical soap bars per minute — shape flexibility without sacrificing production speed
Advanced heat-sealing technology creates tight, secure, tamper-evident wraps that protect product integrity on the shelf
Handles bars from 60-110 mm length and 13-35 mm height with paper, poly, or hot melt laminated materials
Switch between rectangular and elliptical bar shapes on a single machine, eliminating the need for separate wrapping lines
Runs on 4.5 kW with 400 mm reel diameter, balancing throughput with operational cost across multi-shift production
Robust 1,000 kg construction at 2,650 x 1,500 mm footprint — built for the demands of continuous soap manufacturing
This Machine Is for You If...
You need high-speed toilet soap wrapping for Soap & Detergent Industry production
You're upgrading from manual processes to automated elliptical soap bar packaging
You need a machine that delivers wraps 160 rectangular and elliptical soap bars per minute — shape flexibility without sacrificing production speed
Where This Machine Fits
See how this machine integrates into the complete production line
MOI Engineering provides machines for every stage of the production line. View all machines
Request reference clients in your region to hear directly from manufacturers running this machine in production.
Request a Quote for TSW 160
Our engineering team will provide a detailed proposal tailored to your production requirements. Most quotes delivered within 24 hours.
